Zainab, Sylvia, and Ahmed: Study of anatomical variations of mental foramen in dry adult human mandibles and its clinical importance in Karnataka population


Introduction

Mental foramen is a small foramen situated in anterolateral aspect of the body of the mandible. Normally, mental foramen is located below the interval between the premolars. It transmits mental nerve, artery and vein.1, 2, 3, 4, 5, 6, 7, 8 Mental nerve is a branch of inferior alveolar nerve which supplies sensation to lower lip and the labial mucosa and lower canines and premolars. The most useful injection for anaesthetising the mandibular teeth is the inferior alveolar nerve block.9, 10, 11, 12, 13, 14, 15 To anaesthetise the anterior teeth, including the premolars and canines, it is possible to avoid giving inferior alveolar nerve block by injecting anaesthetic solution adjacent to the mental foramen.15, 16, 17, 18 So, the study of position and morphological variation of mental foramen is very important because it will be helpful to localise the important neurovascular bundle passing through the mental foramen.

Any foramen in addition to mental foramen in the body of the mandible is known as accessory mental foramen. Accessory mental foramen transmits the accessory branch of mental nerve. So, the knowledge of its position and incidence is helpful to dental surgeons to achieve complete anaesthesia because if this nerve is not blocked, anaesthesia will be incomplete. This knowledge will also helpful to prevent accessory nerve injury during periapical surgery.

Materials and Methods

Present study included 120 dried adult human mandibles of both sexes obtained from Bone Bank of the Department of Anatomy. Bones which had deformities, damage, asymmetries, external pathological changes and fractures were excluded from the present study.

Campass asthesio meter was used to measure distance, shape, location on both sides of mandibles.

Location of mental foramen was identified by using following parameters.

  1. Distance from mental foramen to mental symphysis.

  2. Distance between the mental foramen to posterior border or ramus.

  3. Distance from mental foramen to alveolar crest.

  4. Distance from mental foramen to base of mental foramen.

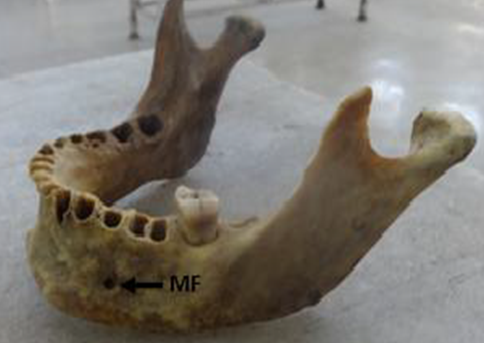

Figure 1

Showing the mental foramen in between 2nd premolar and 1st molar teeth. MF- Mental foramen

https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/d77bfb1f-90ce-40f3-a193-5f5f8a3d81abimage1.png

Statistical analysis

The obtained data was analysed using descriptive statistics.

Results

The mean distance between the mental foramen and symphysis menti for right side was 23.21 mm±2.12 and for left side was 23.10 mm±2.41. The mean distance between mental foramen and posterior border of ramus of mandible for right side was 62.58 mm±4.23 and for left side was 63.84 mm±4.72 in Table 1.

Table 1

Showing the position of mental foramen from various landmarks

Landmarks

Mean distances on right side(mm)

Mean distances on left side(mm)

Symphysis menti

23.21±2.12

24.01±2.41

Posterior border of ramus of mandible

62.58±4.23

63.84±4.72

Alveolar crest

15.23±1.12

16.07±1.01

Base of mandible

15.61± 1.03

15.98± 1.06

The mean distance between mental foramen and alveolar crest for right side was 15.23 mm±1.12 and for left side was 16.07 mm±1.01. The mean distance between the mental foramen and base of mandible for right side was 15.61 mm±1.03 and for left side was 15.98 mm±1.06.

Table 2

Shape of mental foramen

Shape

Study results

Oval

73.32%

Round

32.02%

Shape of the mental foramen is oval 73.32% and round in 32.02% and in Table 2.

Table 3

Size of mental foramen

Size (Mean diameter)

Prabodha et al 14

Present study

In oval shape

2.97 mm

2.37 mm

In round shape

2.11 mm

2.02 mm

The Mental foramen were mean diameter was 2.37 mm in oval shape and mean diameter was 2.02 mm in round shape in Table 3.

Table 4

Comparison of Shape of mental foramen, our study with the other studies

Shape

Prabodha et al14

Priya et al15

Present study

Oval

66.67%

53.3%

76.02%,

Round

33.33%

34.67%

76.33%

Table 5

Comparison Position of mental foramen present study with the other studies

Landmarks

Prabodha et al 14 mm

Sumit et al 19 mm

Present study mm

Symphysis menti

26.52

29.12

23.21±2.12

Posterior border of ramus of mandible

65.38

76.16

62.58±4.23

Alveolar crest

12.15

14.45

15.23±1.12

Base of mandible

13.3

13.85

15.61± 1.03

Discussion

The results of our study about position, shape and size were compared with that of other authors. In our study, the mean distance between the mental foramen and symphysis menti for right side was 23.21 mm±2.12 and for left side was 23.10 mm±2.41. The mean distance between mental foramen and posterior border of ramus of mandible for right side was 62.58 mm±4.23 and for left side was 63.84 mm±4.72. The mean distance between mental foramen and alveolar crest for right side was 15.23 mm±1.12 and for left side was 16.07 mm±1.01. The mean distance between the mental foramen and base of mandible for right side was 15.61 mm±1.03 and for left side was 15.98 mm±1.06. In 120 adult, dry mandibles studied by Sumit et al the mean distance of mental foramens was measure from symphysis menti, lower border of the body of the mandible and posterior border of the ramus of the mandible was 29.12mm, 14.45mm and 76.16mm. The common position for the mental foramen was in line with longitudinal axis of the lower second premolar was (75.8%), a position between first and second premolar were (12.2%) and followed by position in line with first molar was (3.33%). Accessory mental foramen was present in 8 mandibles (6.6%).19

Shape of the mental foramen is oval in 73.32% and round 32.02%. Deepa et al study shows that the shape of mental foramen was oval in 61.2% and rounded in 38.5% of mandibles in most of the studies. Accessory mental foramen was seen in 2 mandibles on right side (5.71%). Double mental foramen was present in 1 mandible (2%). The mean measurement of angle of the mandible was 128°.20

In 80 dry mandibles Lobes et al found that the mean distance of mental foramen measurement from symphysis menti and lower border of the body of the mandible was 26.14 mm and 13.83 mm respectively. The most common location of the mental foramen is in position with second premolar followed by the position between the first mandibular premolar and second premolar teeth.21

Ilayperuma et al studied 51 adult dry mandibles found that the mean distance of mental foramen from symphysis menti was 24.86 mm. The common position for the mental foramen was in line with longitudinal axis of the lower second premolar (52.94%) followed by a position between first and second premolar (26.47%). In many mandibles, the shape of the mental foramen was oval (59%). Multiple mental foramens were 3.92%.22

Deepa et al studied 100 dry mandibles and they found the mean distance of mental foramen measurement from symphysis menti and lower border of the body of the mandible was found 25.28 mm and 12.13 mm respectively. The common position for the mental foramen was in line with longitudinal axis of the lower second premolar in (81.52%) and position between first and second premolar was (7.7%) and followed by position in line with first molar was (7.9%). Double mental foramen was found in 2.6% of cases. The shape of mental foramen was oval in 92% and rounded in 8% of mandibles.20

Prabodha et al, studied 24 adult dry mandibles quoted that the mean distance of mental foramen measurement from symphysis menti, lower border of the body of the mandible and posterior border of the ramus of the mandible was 26.52 mm, 12.25 mm and 65.38 mm. As for as shape of mental foramen is concerned it was found oval in 66.67% and rounded in 33.33% of mandibles. Accessory mental foramen was also found in 2 mandibles (8.33%).23 A Priya et al study 75 adult dry mandibles and found that the mean distance of mental foramens measurement from symphysis menti was 26.50mm respectively. The commonest position for the mental foramen was in line with longitudinal axis of the lower second premolar was (52%) and second premolar (23.33%). The shape of thel foramen was oval in 53.3% and rounded in 34.67% of mandibles. The opening of mental foramen was posterosuperiorly in 90.67% of mandibles.24

Conclusion

The present study of the mental foramen and the incidence of accessory mental foramen will provide helpful information to the oral and maxillofacial surgeon, oncosurgeon for performing procedure on the mandible. Which prevents complications, misinterpretations. also helps to plan and develop newer techniques for nerve blocks for surgery on mandible.

Therefore, identification of mental foramen in its various positions and its morphometric analysis is important for dental surgeons in nerve block and surgical procedures like apical curettage of mandibular premolars and periodontal surgery, to avoid injury to neurovascular bundle. In a majority of mandibles, we have found oval-shaped foramina lying in position IV. However, variations do exist in the position, shape, and size of mental foramen in different population groups. It is essential to be aware of the possibility of these anatomical variations while planning surgery in that region to avoid nerve damage and also to enable effective mental nerve block anaesthesia.

Source of Funding

None.

Conflict of Interest

None.

References

1

R Singh A K Srivastava Study of position, shape, size and incidence of mental foramen and accessory mental foramen in Indian adult human skullsInt J Morphol20102811416

2

D R Agarwal S B Gupta Morphometric analysis of mental foramen in human mandibles of south Gujarat. People’sJ Sci Res20114158

3

W E Shankland The position of mental foramen: in Asian IndiansJ Oral Implantol19942011823

4

D R Sawyer M L Kiely M A Pyle The frequency of accessory mental foramina in four ethnic groupsArch Oral Biol199843541720

5

G Hauser G F De Stefano Epigenetic variants of human skullEd. SchweizebartStuttgart19892303

6

L B Çağirankaya H Kansu An Accessory Mental Foramen: A Case ReportJ Contemp Dent Pract20089198104

7

R Rakhi B Virendra D K Sathpathi S Sandeep G K Kumar Morphology and morphometry of the mental foramen in dry adult human mandibles from central India and their clinical correlationEur J Anat2012161226

8

D K Sankar P J Susan S P Bhanu Morphometrical and morphological study of mental foramen in dry dentulous mandibles of South Andhra population of IndiaIndian J Dent Res20112245426

9

K Katakami A Mishima K Shiozaki S Shimoda Y Hamada K Kobayashi Characteristics of Accessory Mental Foramina Observed on Limited Cone-beam Computed Tomography ImagesJ Endod2008341214415

10

A Boronatlópez M Peñarrochadiago Failure of locoregionalanesthesia in dental practice: review of the literatureMed Oral Patol Oral Cir Bucal20061165103

11

T Hanihara H Ishida Frequency variations of discrete cranial traits in major human populations. IV. Vessel and nerve related variationsJ Anat2001199327387

12

A H R Rowe Clinical Dentistry3rd editionOxford: Blackwell Scientific Publications198637283

13

M S Chung H J Kim H S Kang I H Chung Locational relationship of the supraorbital notch or foramen and infraorbital and mental foramina in KoreansActa Anat19951541626

14

W Apinhasmit D Methathrathip S Chompoopong S Sangvichien Mental foramen in Thais: an anatomical variation related to gender and sideSurg Radiol Anat200628552933

15

S Agthong T Huanmanop V Chentanez Anatomical Variations of the Supraorbital, Infraorbital, and Mental Foramina Related to Gender and SideJ Oral Maxillofac Surg20056368004

16

H Yesilyurt A Aydinilioglu A Kavakli N Ekinci C Eroglu M Hacialiogullari Local differences in the position of the mental foramenFolia Morphol2008671325

17

A Chandra A Singh M Badni R Jaiswal A Agnihotri Determination of sex by radiographic analysis of mental foramen in North Indian populationJ Forensic Dent Sci20135152

18

T M Wang C Shih J C Liu K J Kuo A clinical and anatomical study of the location of the mental foramen in adult Chinese mandiblesActa Anat198612612933

19

G Sumit S S Jagdish Study of anatomical variations and incidence of mental foramen and accessory mental foramen in dry human mandiblesNatl J Med Res2012212830

20

R A Deepa B G Sandeep Morphometric analysis of mental foramen in human mandibles of South GujaratPeople’s J Sci Res20114158

21

P T C Lopes G A M Pereira A M P V Santos Location of the mental foramen in dry mandibles of adult individuals in Southern BrazilJ Morphol Sci2010271235

22

I Ilayperuma G Nanayakkara N Palahepitiya Morphometric Analysis of the Mental Foramen in Adult Sri Lankan MandiblesInt J Morphol2009274101924

23

L B L Prabodha B G Nanayakkara The position, dimensions and morphological variations of mental foamen in mandiblesGalle Med J20061111350947-8965, 1433-0415

24

P R Priya M P Ambali M A Doshi S D Jadhav Variation in the position and shape and direction of mental foramen in dry mandibleInt J Anat Res20142241820
